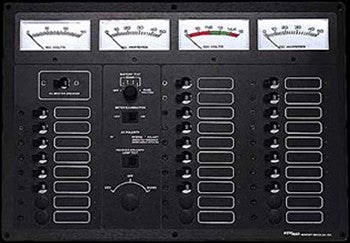

Newmar AC-DC Master Control Pane

• Large 3-1/2” scale meters and an ample circuit breaker
capacity makes this the panel of choice for boats in the 35’
- 45’ range.
• DC Circuits: 20 breaker capacity, 16 installed standard; (2)
5 amp, (3) 10 amp, (4) 15 amp, (3) 20 amp or specify.
• AC Circuits: Master (D.P.) 50 amp standard plus 8 S.P.
branch capacity, 6 installed standard; (1) 10 amp, (3) 15
amp, (2) 20 amp or specify.
• Dimensions: 17” W x 12” H x 4” D.
