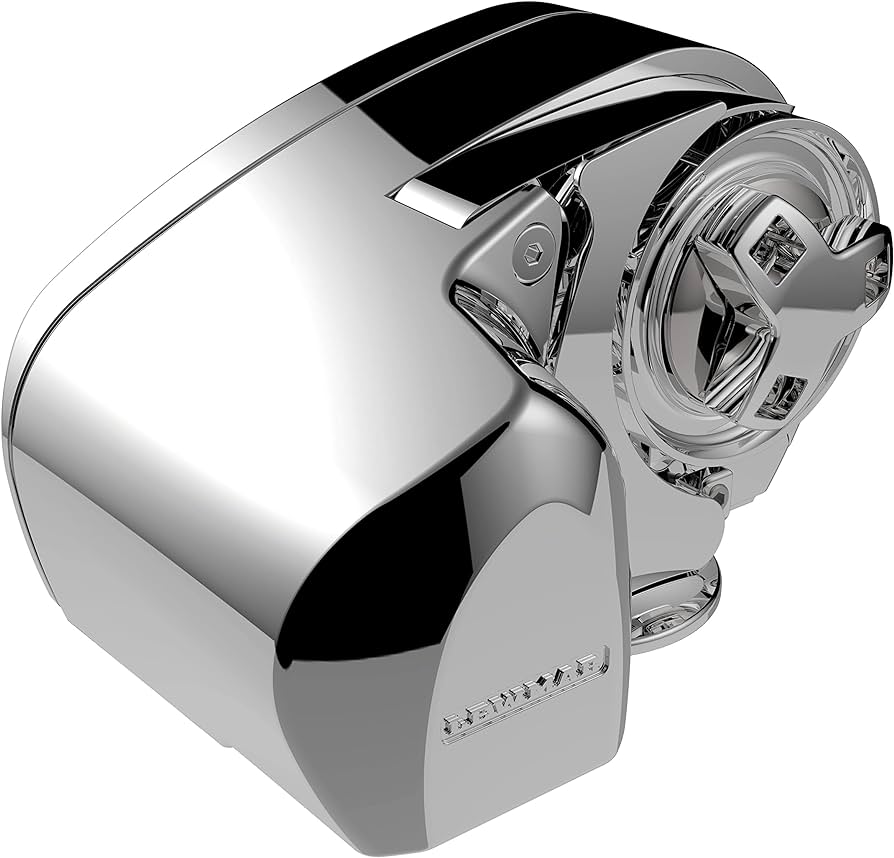

Lewmar Pro-Series 700/1000 Horizontal Windlasses

• 100% 316 stainless steel housing.
• For boats up to 38 ft.
• Maximum line speed/min.: 105 ft.
• Fast line speed.
• Worm motor gearbox for reliability.
• Dual direction solenoid inside unit.
• Rope-chain gypsy.
• Manual recovery option.
• 5 year warranty.
• Dynamic DIY install kit includes: Windlass, base gasket seal, fast mounting studs, installation
wrench, circuit breaker, dual-direction solenoid and rocker switch.

PRO-SERIES 700 HORIZONTAL WINDLASS
• Motor power: 500W.
• Typical working load: 175 lbs. Maximum pulling power: 700 lbs.
• Use with 1/4” G4 or BBB, 7mm DIN 766 chain, 1/2” (12mm) 3-strand and 8-plait rope.

PRO-SERIES 1000 HORIZONTAL WINDLASS
• Motor power: 700W.
• Typical working load: 250 lbs. Maximum pulling power: 1,000 lbs.
• Use with 5/16” G4 chain, 9/16” - 5/8” 3-strand and 8-plait rope.
