Jabsco Electric Toilet Base Kit

• Convert our Manual Toilet Compact and Regular bowl models to full electric operation without
need to alter existing inlet or discharge seacocks.
• Also converts most toilets with 4 bolt screw pattern on a 3-3/4” diameter bolt circle such as
Groco, Raritan, Wilcox Crittenden, Mansfield and Sealand.
• Push button flushing for ease and simplicity of operation.

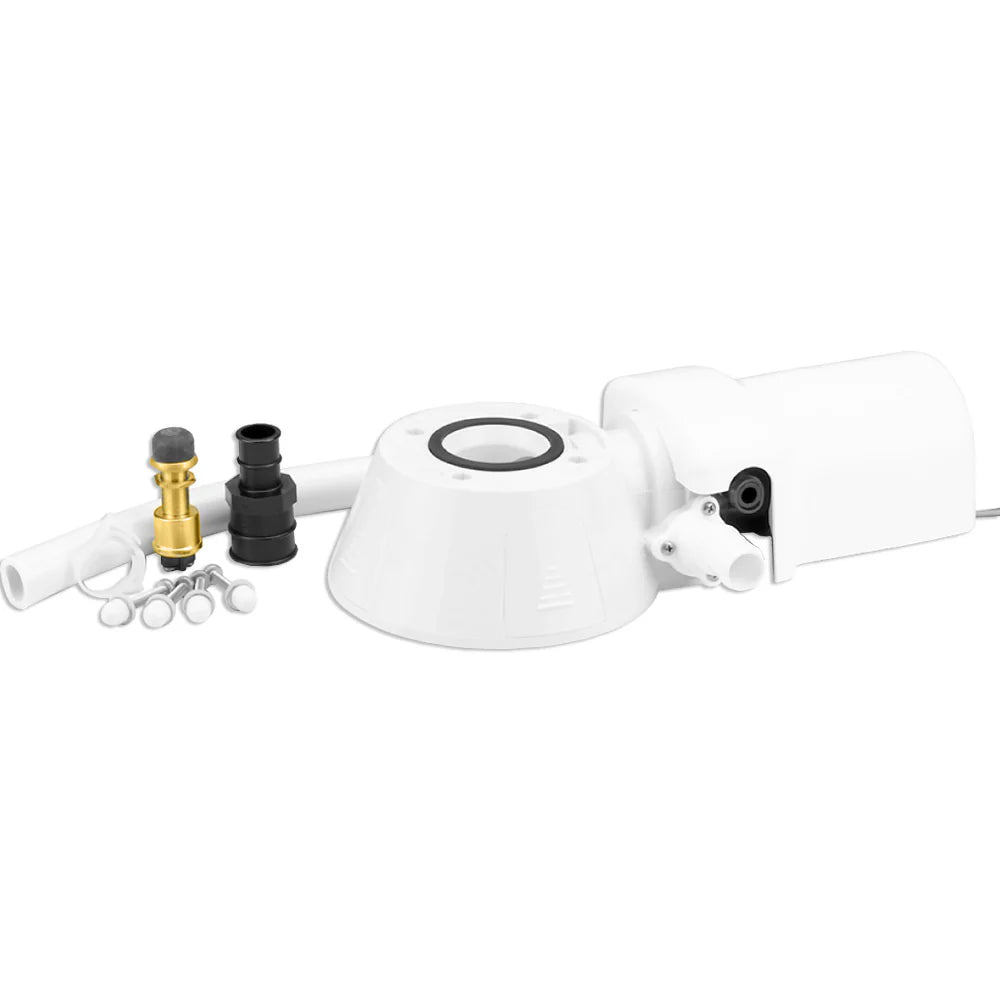

• Comprehensive kit has all necessary parts, including flushing pump, macerator pump, switch,
adapters, clamps, hose and fastenings.
• Flushing pump self-priming up to 4’ vertical lift.
• May be installed 3’ below the waterline.
• 5/8” to 3/4” inlet, 1” outlet back flow check valve in discharge.
• Dimensions: 13-1/4” L x 8-1/4” W x 3-1/4” H.
• Complies with USCG 183.410 and ISO 8846 MARINE (Ignition protection).
• 12 volt.
