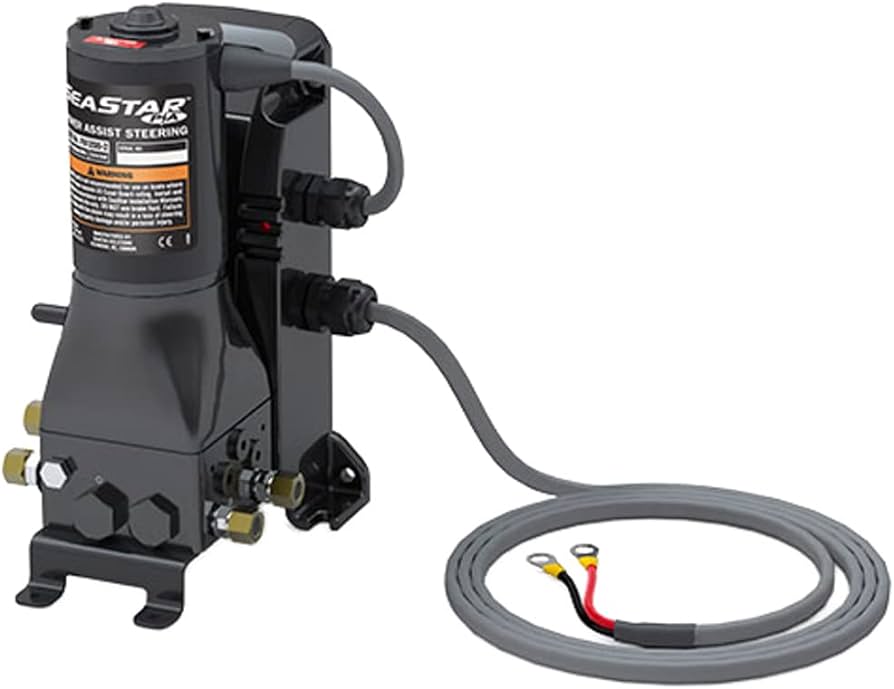

Dometic Power Assist DOMETIC POWER ASSIST PRO - 12/24 VOLT

• Highly recommended on any 150 HP and
above outboard application to give your boat
the same, easy steering you are accustomed
to in your car.
• Also recommended for the following: Twin and
Triple engine applications, Bass Boats, Pontoon
Boats (150 HP+), Power Catamarans, Inboard
powered cruisers without engine driven power
assist.
• Uses an electronically controlled on-demand hydraulic pump to provide “Power” for your
Dometic Hydraulic Steering System.
• Comprised of two circuits: A hand operated manual system, which is the control element and
a hydraulic power pump, which is the working element.
• Harness length: 15’.

• 1,500 psi maximum system peak pressure. Relief pressure: 2,000 psi.
