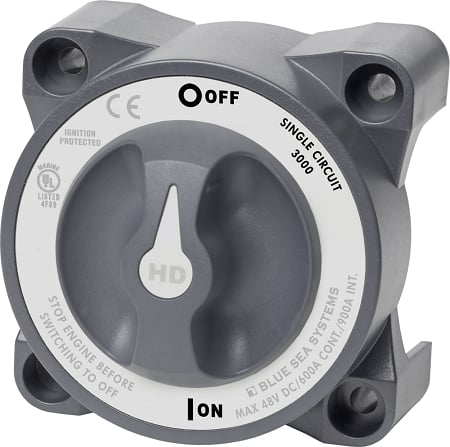

Blue Sea HD-Series Heavy Duty Battery Switch - Single Circuit ON-OFF

• Up to 600 Amps continuous rating for large diesel
engines.
• Tin-plated copper studs for maximum conductivity
and corrosion resistance.
• Accepts up to 4/0 (120 mm2) AWG battery cables.
• Studs accept 1/2” (M12) ring terminals.
• 7/8” stud length accepts multiple cable terminals.
• One-piece terminal stud design never loosens over time.
• One-piece stainless flange nuts ensure safe and secure connections.
• Case design allows surface or rear mounting options.
• Tactile indicator conveys knob position by feel.
• Ignition protected.
• Switches a single battery to a single load group.
• Cranking rating (30 sec.): 1,750A.
• Intermittent rating (1 min.): 1,325A. Intermittent rating (5 min.): 900A.
• Continuous rating: 600A.
• Voltage maximum operating: 32V DC.
• Dimensions: 3.85” x 3.85”
