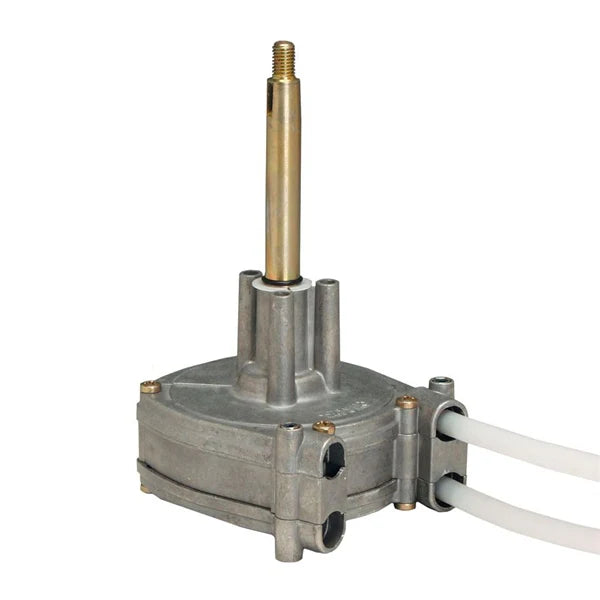

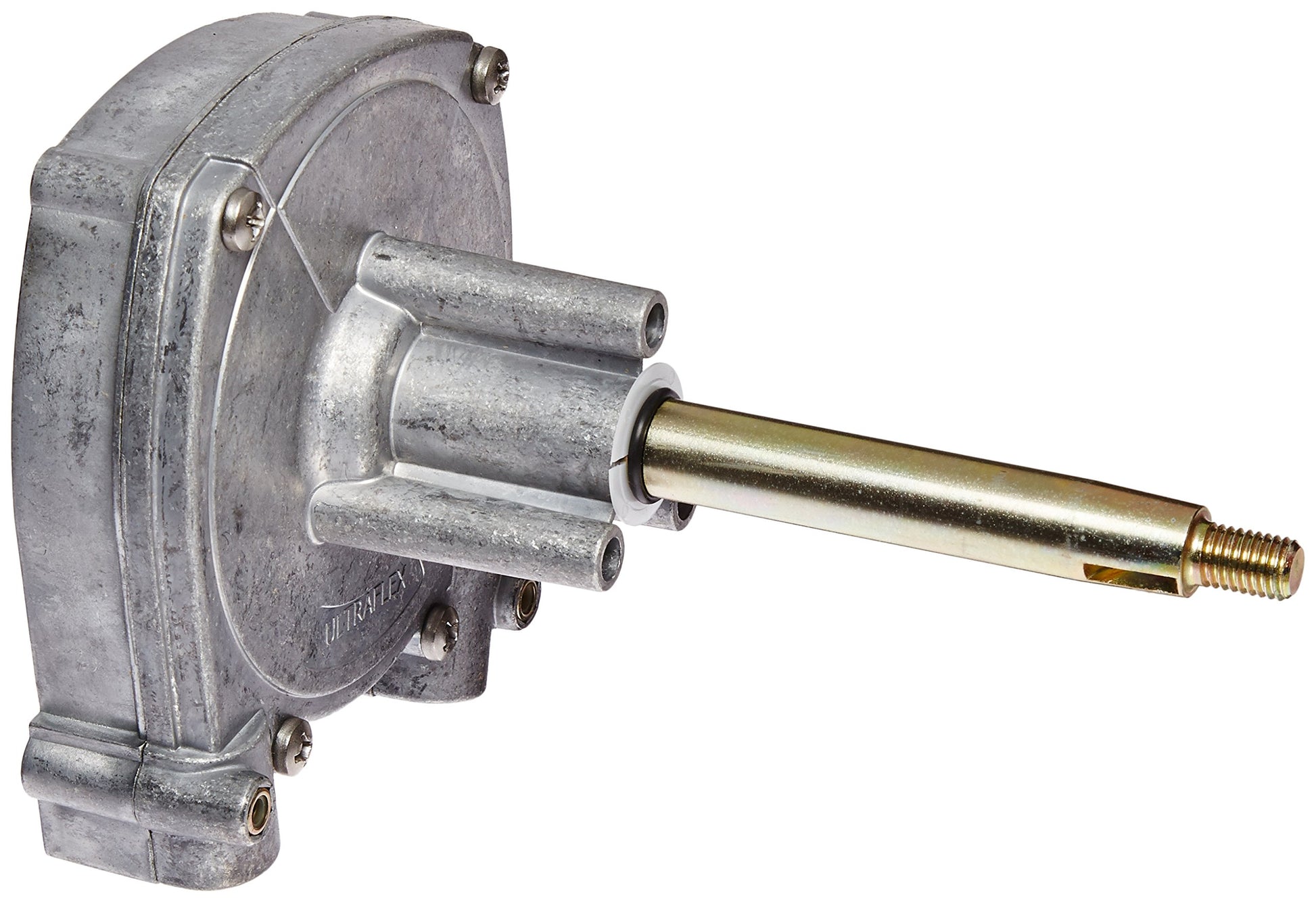

Uflex Rotary Helms

• Fast connect, simple installation.
• All stainless steel cable output ends.
• Made of corrosion resistant materials.
• Standard 3/4” tapered shaft.
• Minimal feedback.
• Stroke: 9”.
• Lock-to-lock steering wheel turns: Approx. 3.8.
• Maximum steering wheel diameter: 16”.
• Minimum steering cable bend radius: 7.9”.
• Use with M66 or M90 Cable.
• Optional 90° or 20° installation.
• No hardware, use X34 or X35 mounting bezels.
• Not to be used on boats equipped with engines that exceed the maximum horsepower rating
of the boat.
• For boats faster than 50 mph our hydraulic steering systems are recommended.
• T71 is available in package with ROTECH-I.
