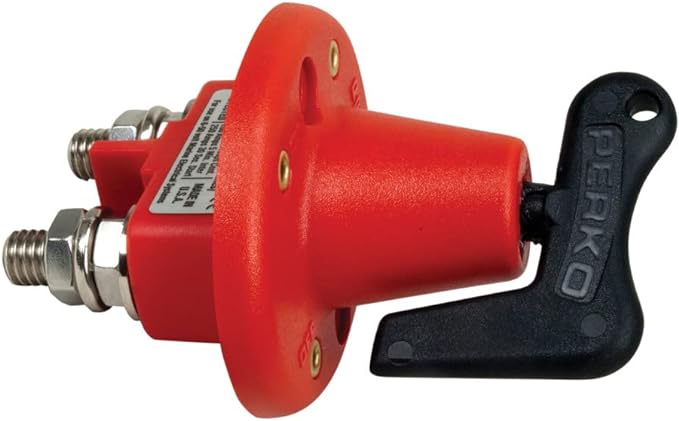

Perko Compact Battery Selector and Disconnect Switches

• Polycarbonate body with nickel plated terminals.
• Ignition protected.
• For use with alternators and generators 6-50V DC Marine Electrical Systems.
• Small compact size.
• Two mounting options: Panel mount with backing plate and Bulkhead mount with mounting legs.
• Removable actuator key.
• Uses #10 fasteners.
• Terminal stud size: 3/8”.
• Rated: 140 amps continuous, 200 amps 5 min. intermittent, 250 amps 30 second start

• Face dimensions: 3” x 2-1/2”. Hole size: 2-1/8”.
