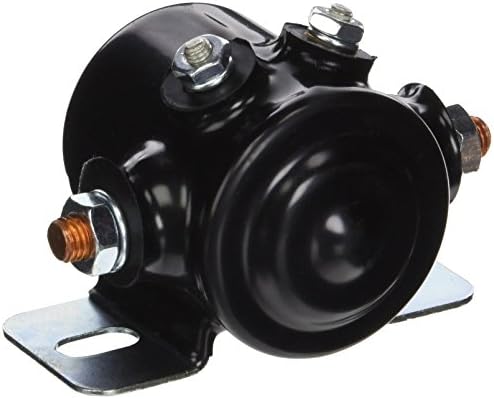

Cole Hersee Continuous-Duty SPST Series - Solenoid Relay

• Plated steel housing with a black PVC coating is sealed to an IP66 rating.
• Continuous rating: 65 amp.
• Intermittent rating: 120A make, 65A break at 10 second on, 30 minute off.
• Insulated coil design electrically isolates the studs from the housing.
• SPST circuitry and normally open contacts.
• Two large 5/16”-24 copper power studs and two small #10-32 steel coil studs (control
circuit) are heavy and durable.
• Flat bracket.
• Included hex nuts and lock washers are assembled.
• UL & CE approved.
• 24 volt.
