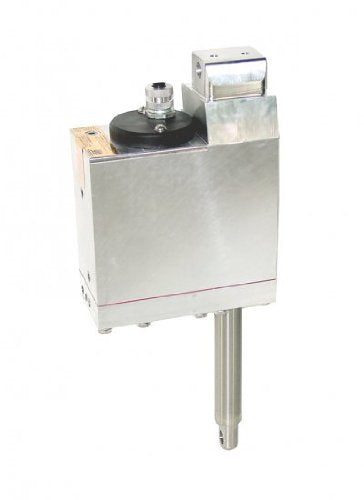

CMC High Speed Power-Life Actuator (7342)

• 6061-T6 aluminum alloy construction.
• Stroke length: 5”.
• Completely self contained with their own fluid reservoir.
They incorporate the pump, motor, reservoir and cylinder all
in the same body. This eliminates the need for multiple
hydraulic components such as hoses, pumps and cylinders.
• Made of 100% non-ferrous materials and are totally submersible.
• Replacement high speed hydraulic actuator for:
- CMC Power-Lift Hydraulic Jack Plates (Models: 61301, 61302, 65301, 65302)
- T-H Marine Hydro-Jacker Jack Plates (Models: HYJ-6HSC-DP, HYJ-10HSC-DP)
- T-H Marine ATLAS Micro Jacker (Model: AHJM-4-DP).
• Not for “standard” versions of hydraulic jack plates, but can be used to retrofit standard
versions to higher speed version.
