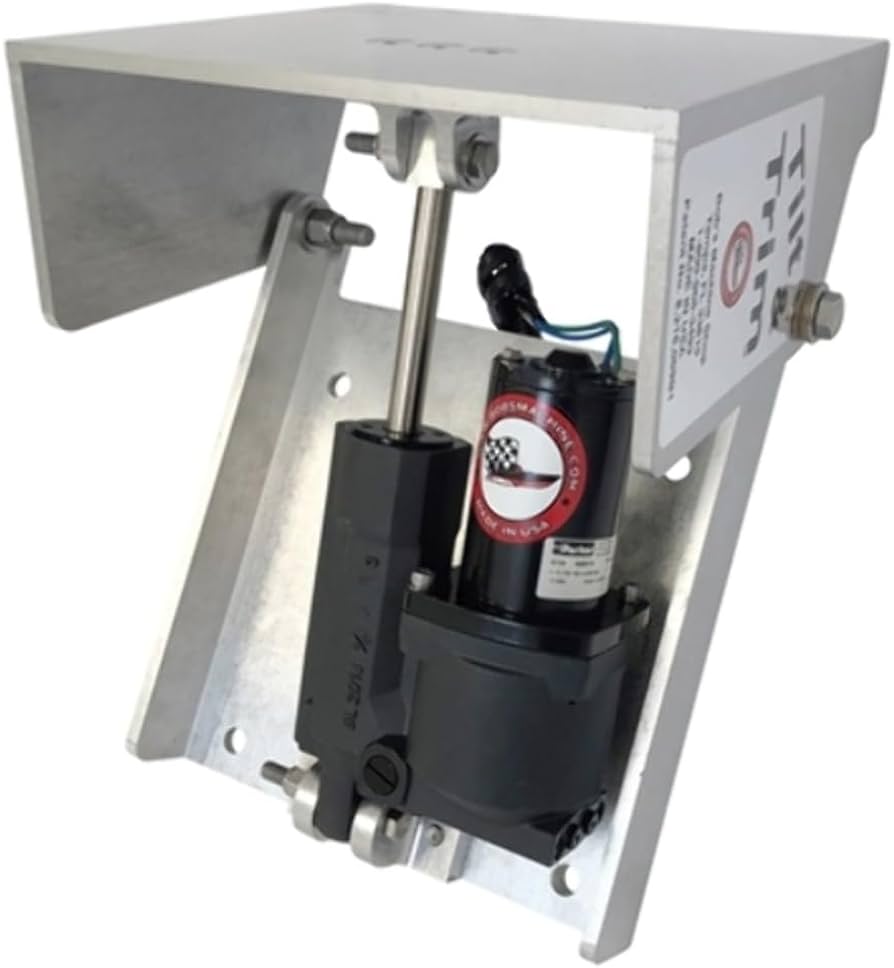

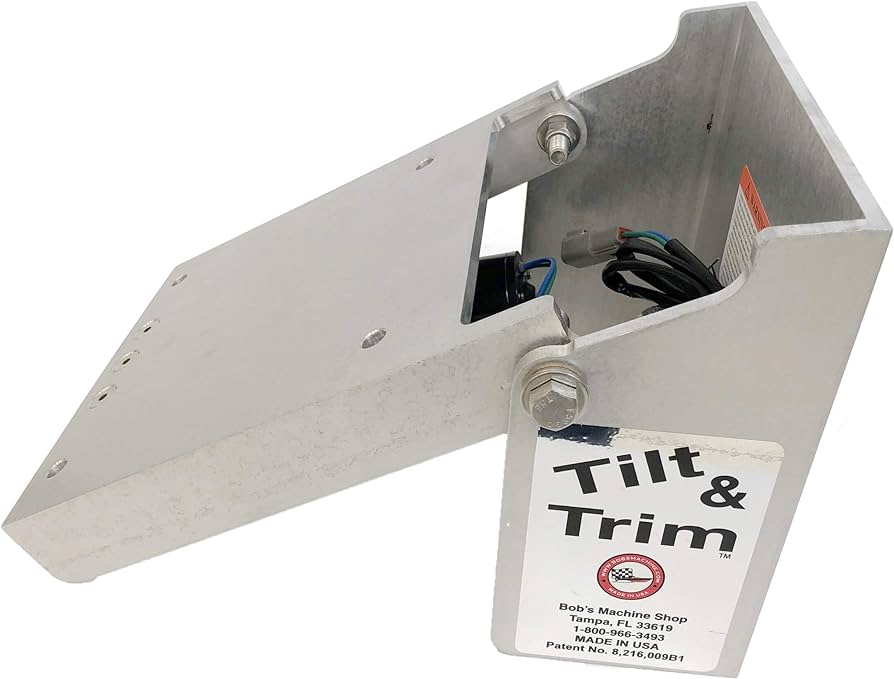

Bob’s Machine Shop Action Series Clamp-on Motor Tilt and Trim

• Designed for motors up to 30 HP, BMS’s new hydraulic Tilt & Trim can provide increased performance, better handling and less hassle raising and lowering the motor at the launch ramp.
• Allows skippers to trim the boat for a smoother, drier ride.
• When fully trimmed in, it provides a negative 3-degree tuck-under angle for faster starts and quicker on-plane times. After reaching plane, the boat can be optimized for best running angle by trimming the tilt up to its maximum of 75 degrees.
• A 5-1/2” setback is standard.
• The hydraulically operated Tilt & Trim will accommodate clamp-on motors, not standard BIA bolt pattern style.
• Over all mounting dimensions, which are: 10” wide by 11.5” length.
• It comes with wiring harness, control switch and carries a limited lifetime structural warranty.
