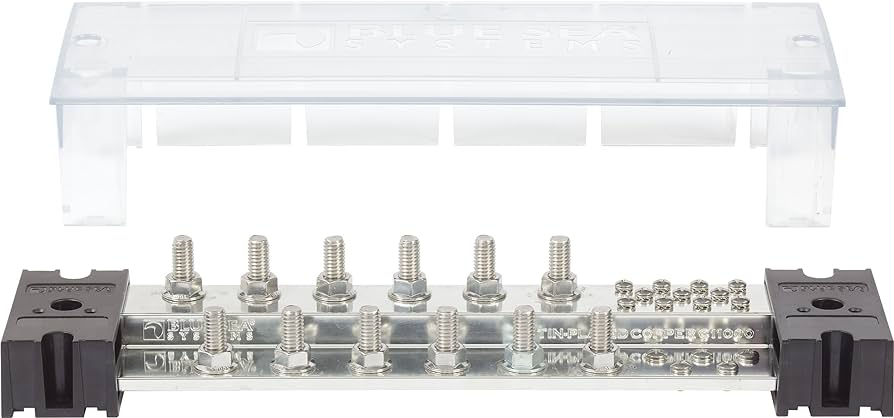

Blue Sea PowerBar 1000

• Complex wiring systems require a single point to consolidate large and small conductors.
• Offers a 1,000 Amp busbar with various size studs and screws to connect conductors and fuse
blocks.
• Tin plated pure electrical copper for maximum conductivity.
• Stepped bus design offers two elevations for conductors which doubles the density of the wire
loom compared to traditional bus bars.
• Busbar and fuse block elevations match common fuse blocks allowing for multiple fuse block
attachment, eliminating the need for connecting cables.
• One-piece serrated flange nuts ensure correct and secure connections.
• Stainless steel 8-32 screws with captive lock washers for securing smaller gauge wires.
• Busbar may be cut to a shorter length to accommodate constricted spaces.
• Bi-directional busbar end caps allow the ganging of additional busbars.
• Snap on insulating cover meets ABYC and USCG requirements and includes label recess.
