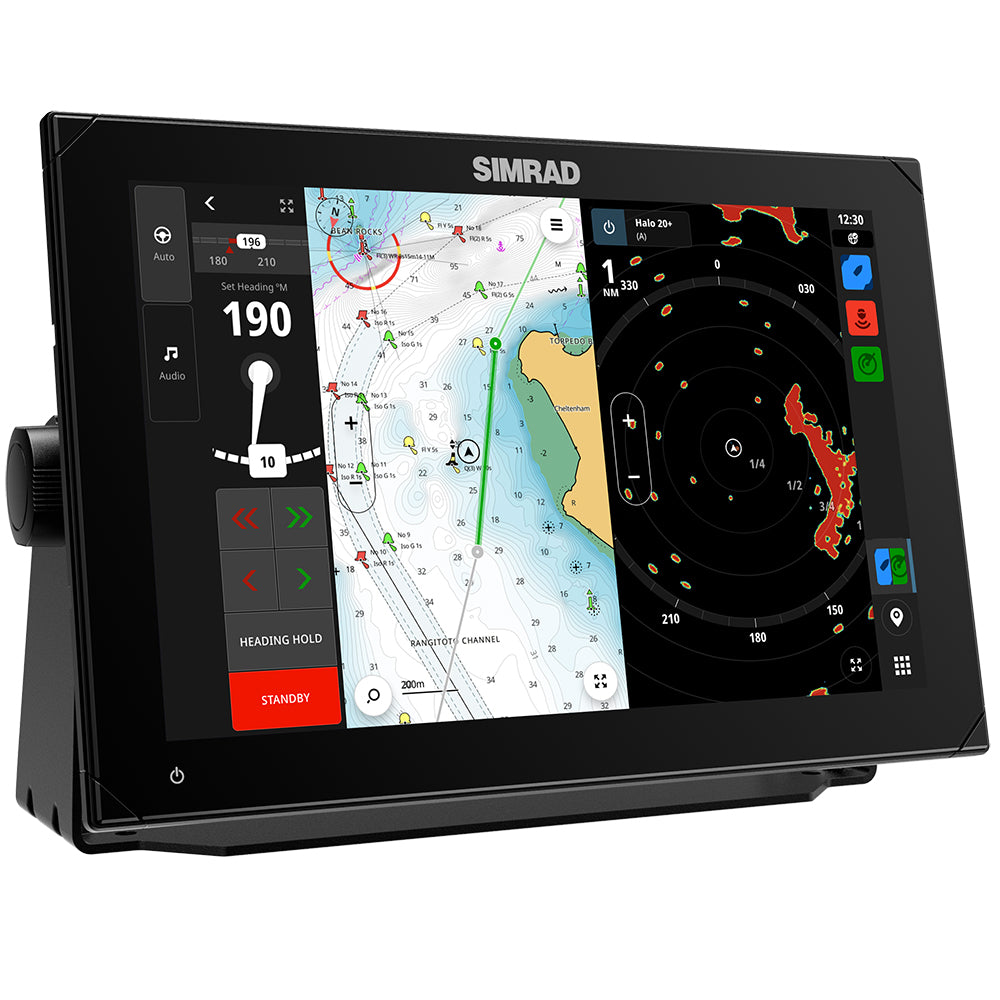

Simrad NSX™ Smart Chartplotter & Fishfinder NSX 3012

DISPLAY

12” with Mutli-Touch Screen, White
1280 x 800
85° (Top, Bottom, Left and Right)

CONNECTIVITY

Bluetooth 4.0 with support for Bluetooth Classic
1 port (5-pin connector)
IEEE 802.11b/g/n
1 x NMEA 2000 Micro-C port, 1 LEN
No
1 MicroSD slot, USB port for external drive
Ip Camera support

MFD

Receive AIS data over NMEA 2000
Discover X chart card of North America
Internal, 10Hz, WASS, MSAS, EGNOS
One 9 pin Xsonic 1 kW Sonar port. Single channel CHIRP,
50/200 khz, HDI Active Imaging
6000 waypoints, 500 routes with 100 max route
points, 50 tracks with up to 12,000 track points

GPS

10 Hz high speed update (internal) WASS, MSAS, EGNOS,
GLONASS
32 Channels
Horizontal Accuracy 3 m (9.8 ft)
10 Hz

CARTOGRAPHY

C-MAP Tile (CMT) Discover X C-MAP Tile (CMT) Reveal X
