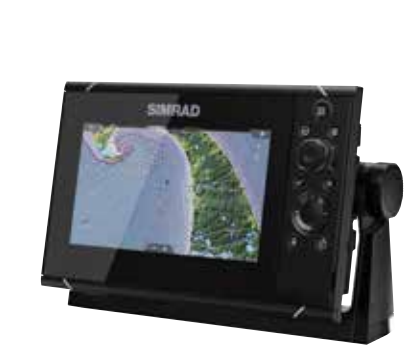

Simrad NSSevo3S™ Chartplotter & Fishfinder NSS7 evo3

DISPLAY

7” with Mutli-Touch Screen, White
1024 x 600
80° Top/Bottom, 80° Left/Right

CONNECTIVITY

Internal
1 x 5 pin yellow connector x 1 Mbit
Internal
1 x NMEA 2000 Micro-C port, 1 LEN
No
2 MicroSD slots, max. 32 GB each
2 x composite (RCA connectors) video inputs

MFD

Receive AIS data over NMEA 2000
Full auto pilot control and commissioning
Insight
BEP C-Zone, Naviop
Internal
16 GB
via SonicHub2, FusionLink
Two 9 pin Xsonic Sonar ports. Sonnar port 1: Single channel
CHIRP, 50/200 khz, HDI. Sonar port 2: Single channel
CHIRP, 50/200 khz, TotalScan, LSS HD, ForwardScan
6000 waypoints, 500 routes with 100 max route
points, 50 tracks with up to 12,000 track points
SiriusXM via WM-3 (USA only), GRIB

GPS

WASS, MSAS, EGNOS, GLONASS
34 Channels
Horizontal Accuracy 3 m (9.8 ft)
10 Hz

OTHER

Full touch screen (multi-touch) and full keypad control, OP50
remote controllers
